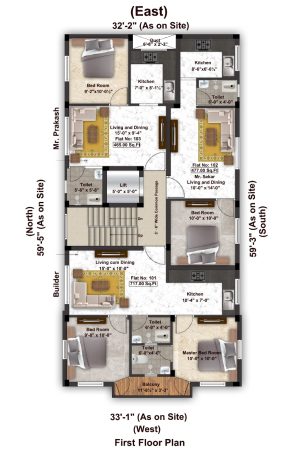

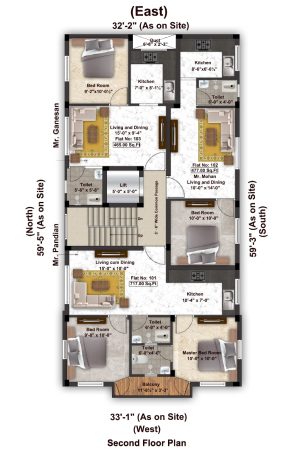

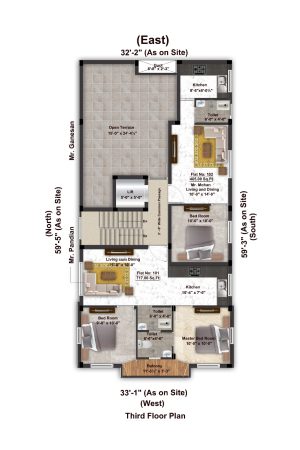

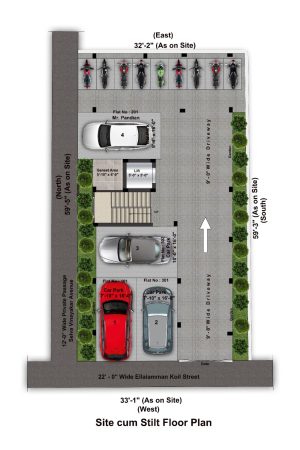

Floor plan
Residential Buildings

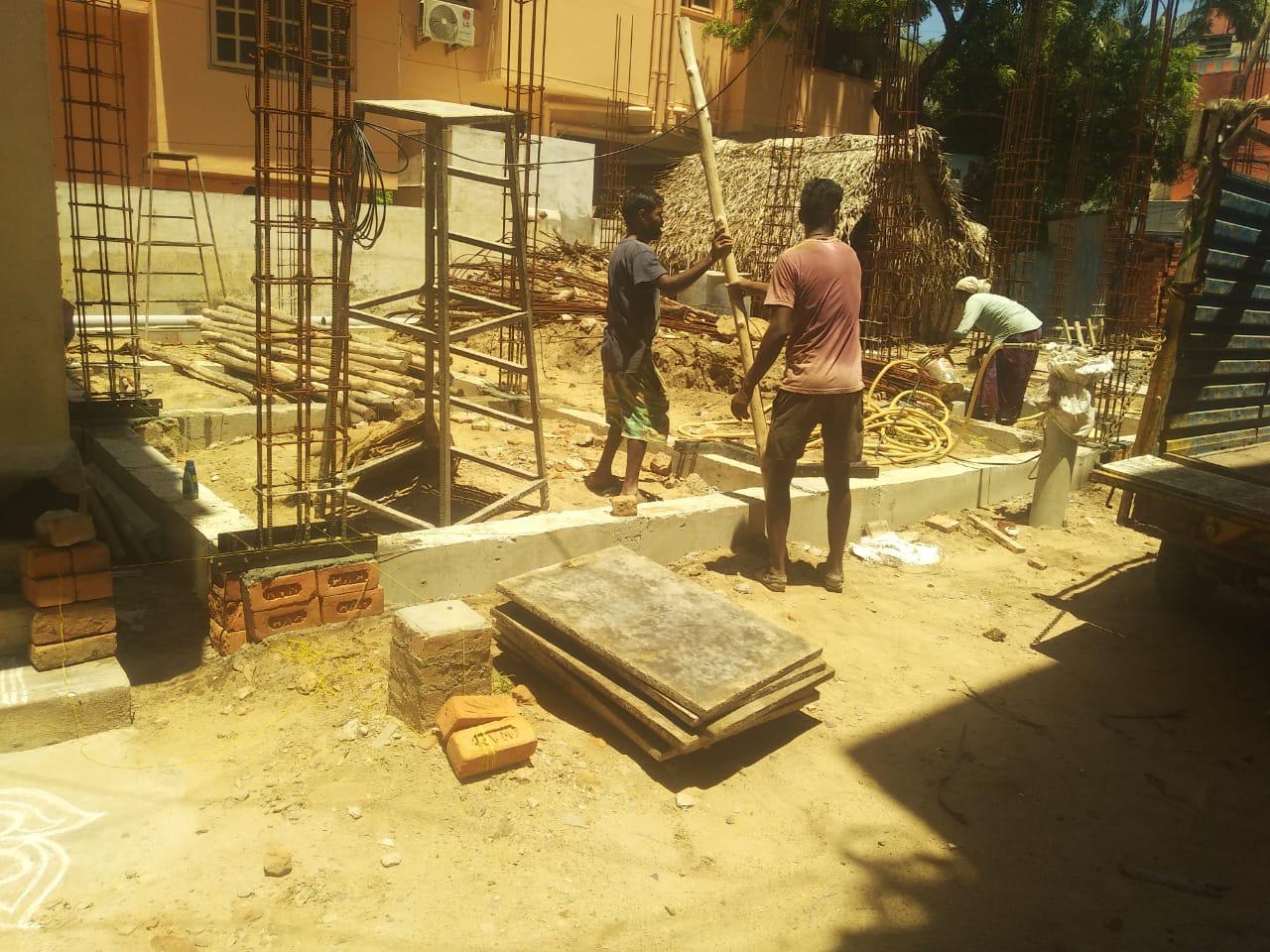

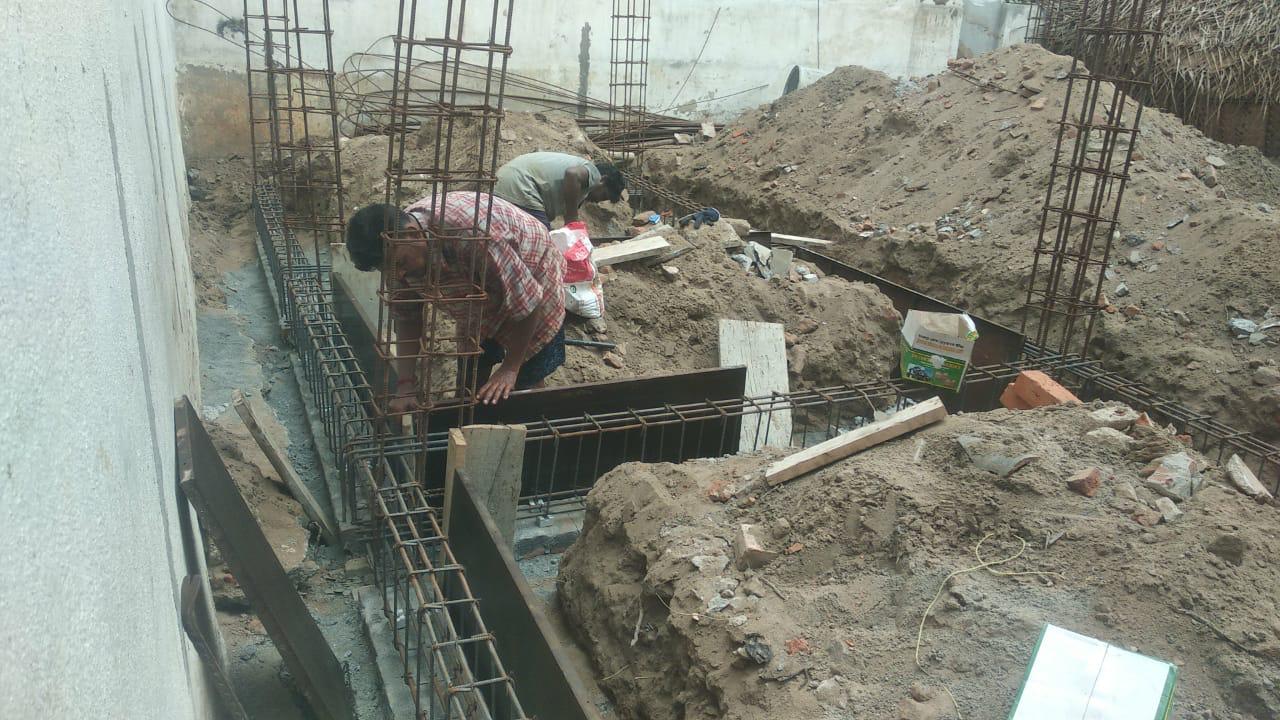

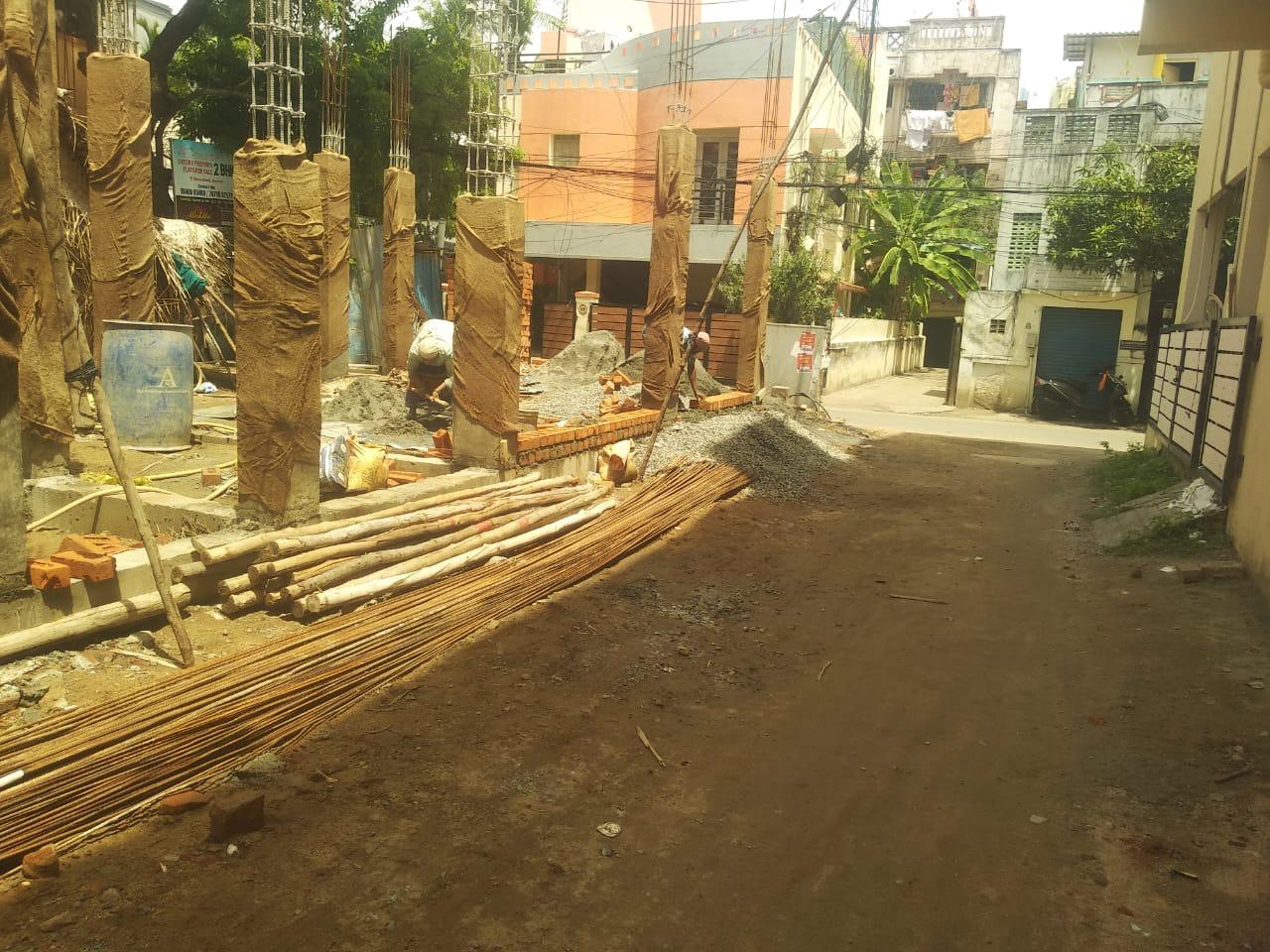

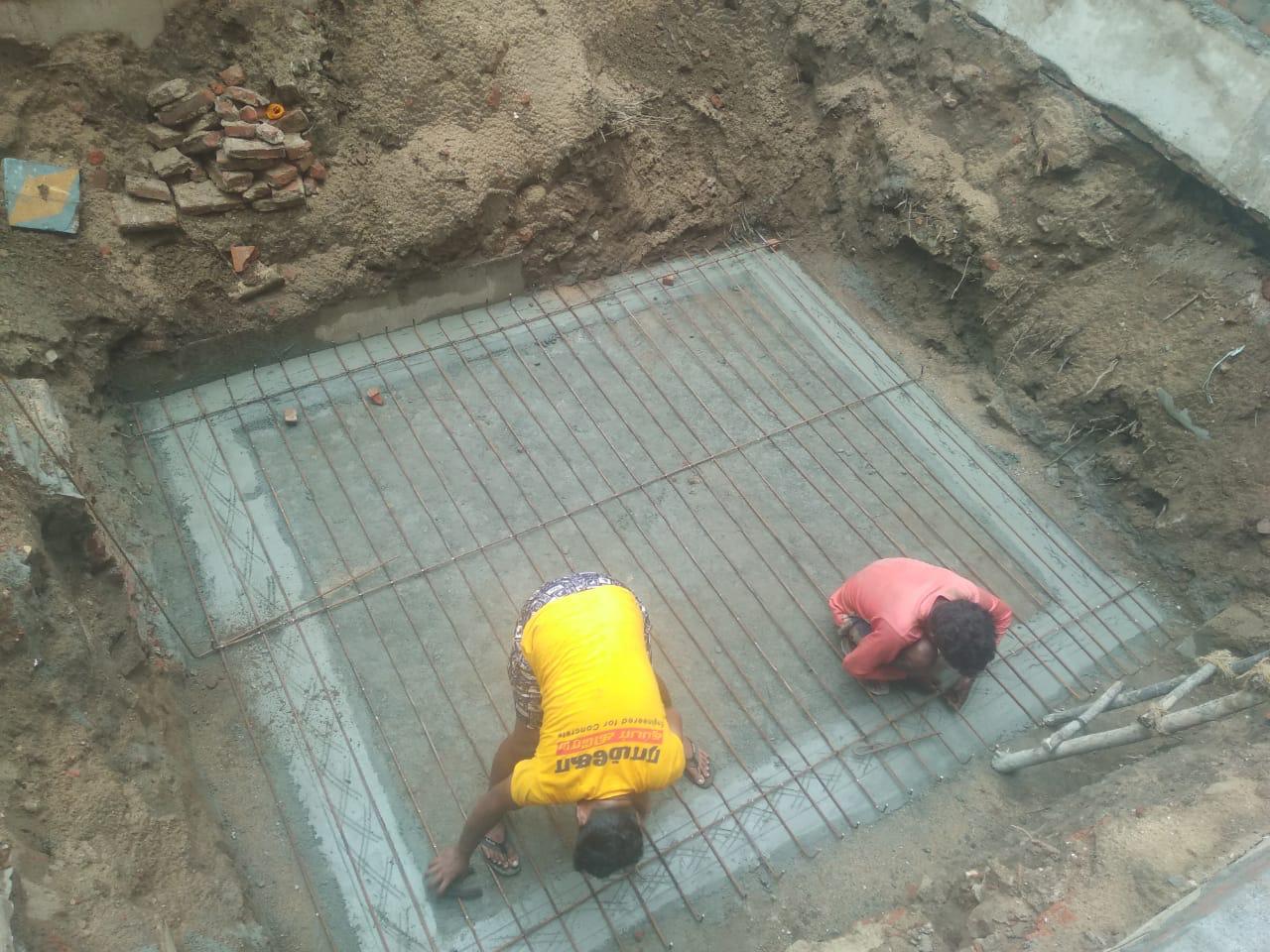

Isolated Foundation (or) Pile Foundation (or) any Foundation depend on Soil Test and R.C.C Works using all Steels Requirements with our Structural Engineer Specifications.
With River Sand in foundation to a death of 4” over filling earth including watering ramming complete for Isolated Footing.
Minimum 3 feet height above road level with Brick Work.
In the foundation with 40mm” blue metal jelly 1:5:10 Mix

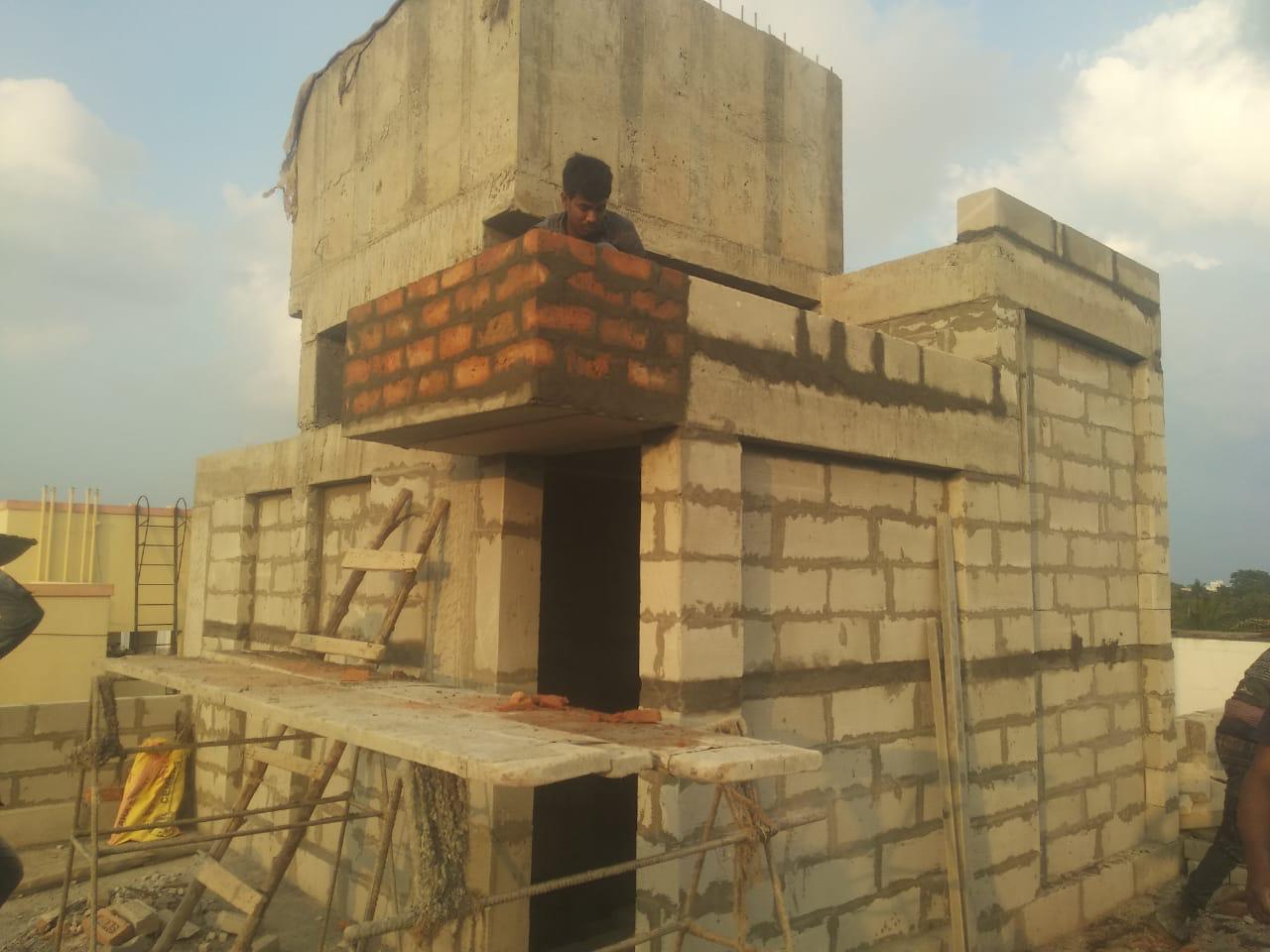

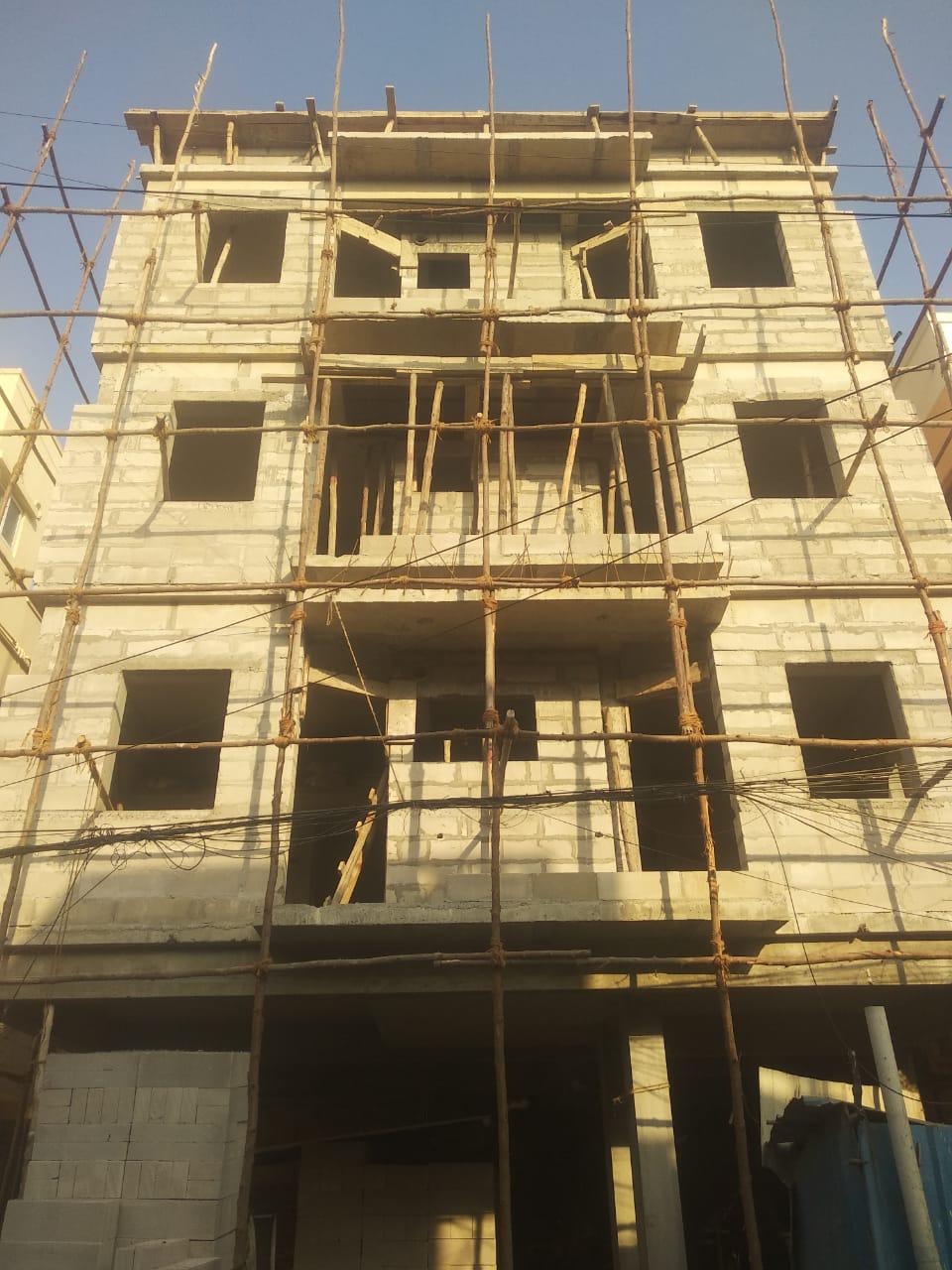

Using Porotherm Bricks in super structure 8” for Bifurcating, outer walls in 4” thick wall using Inner Partition Walls.

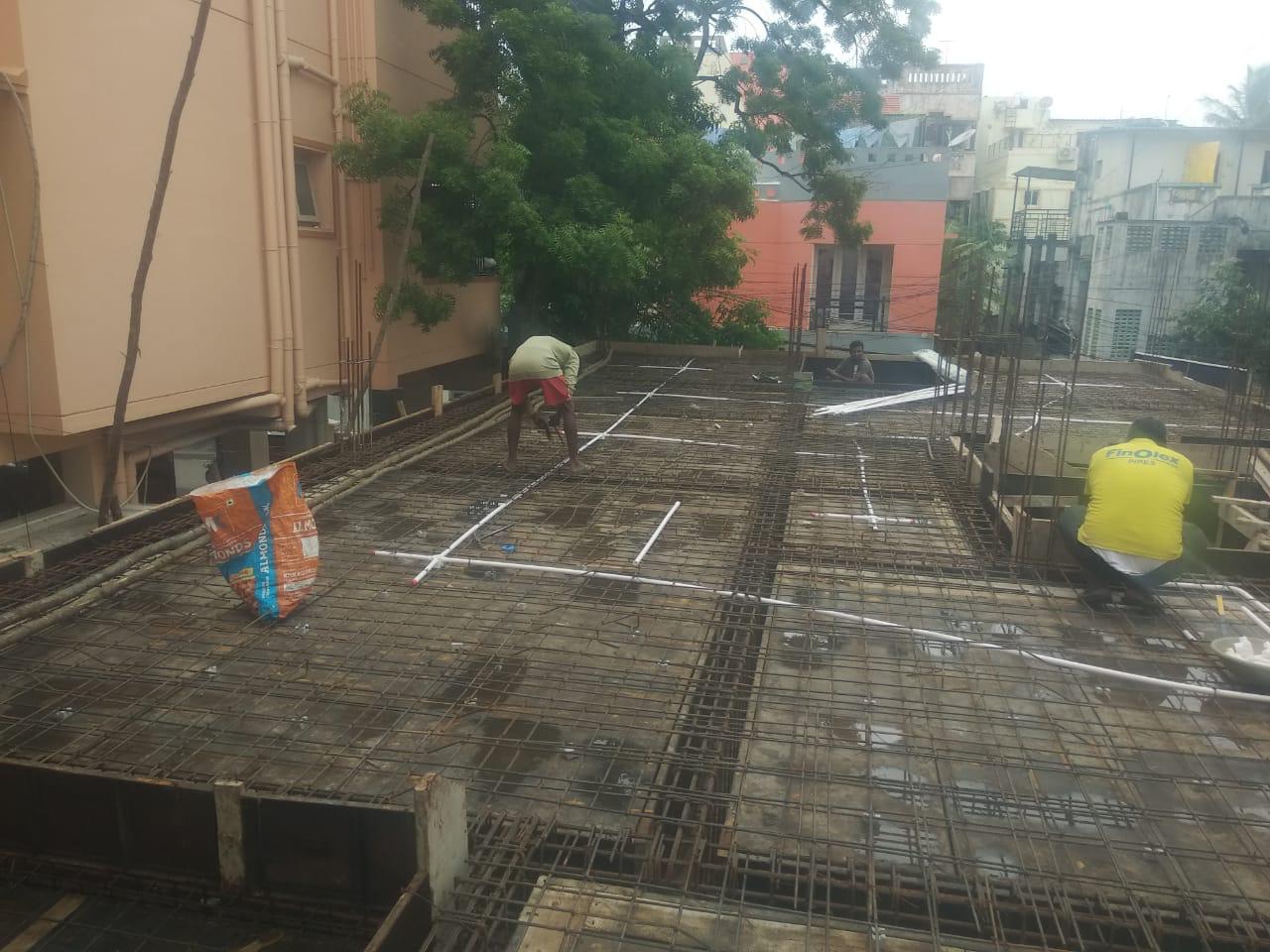

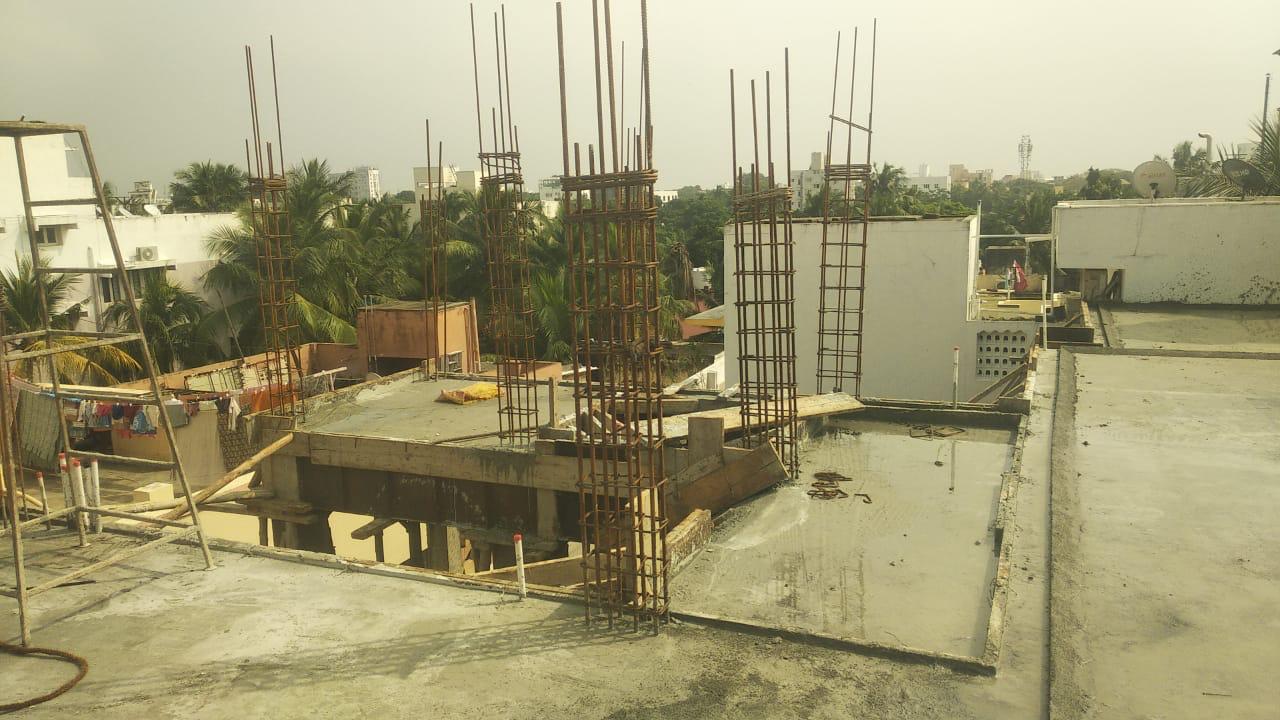

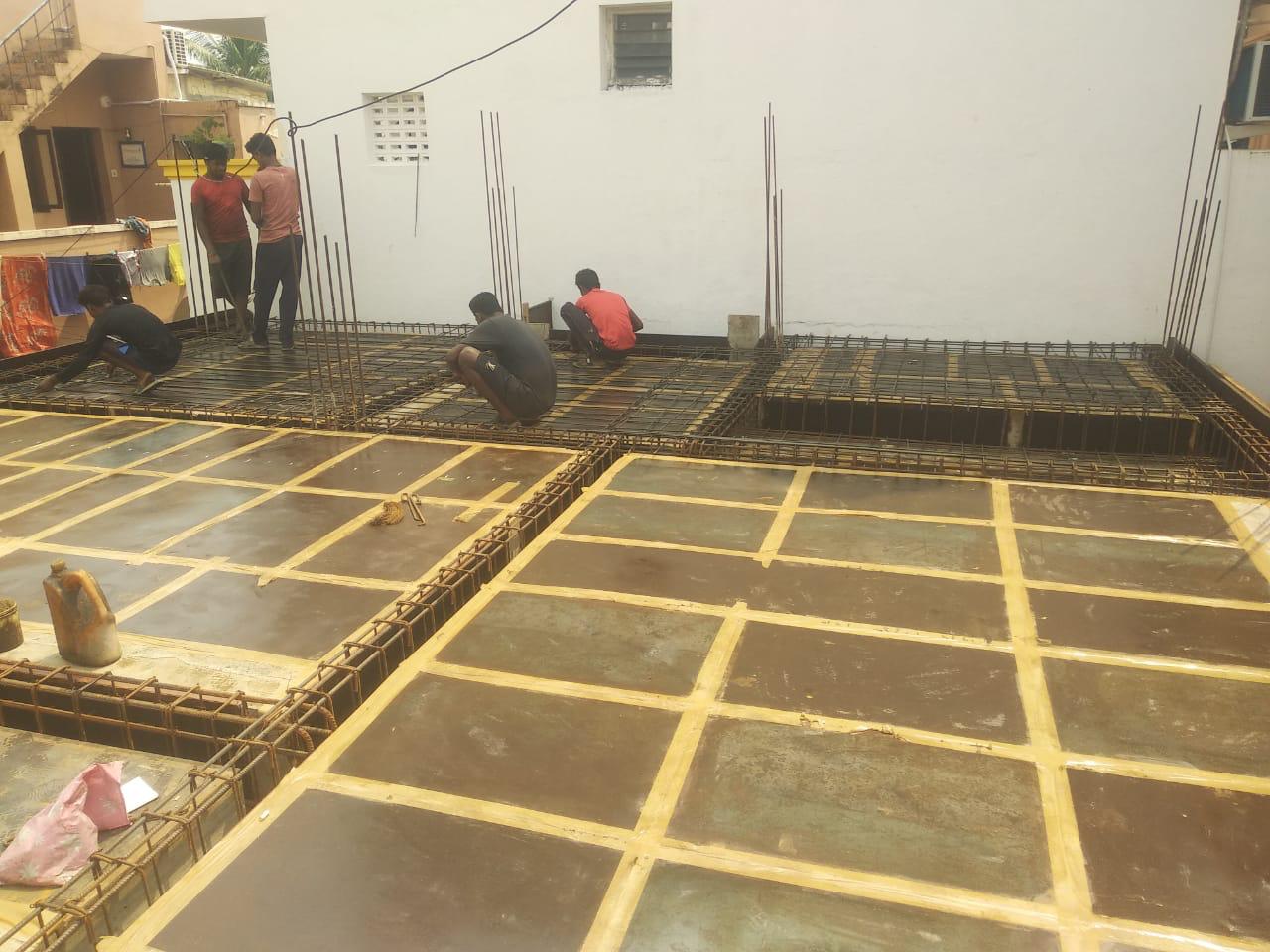

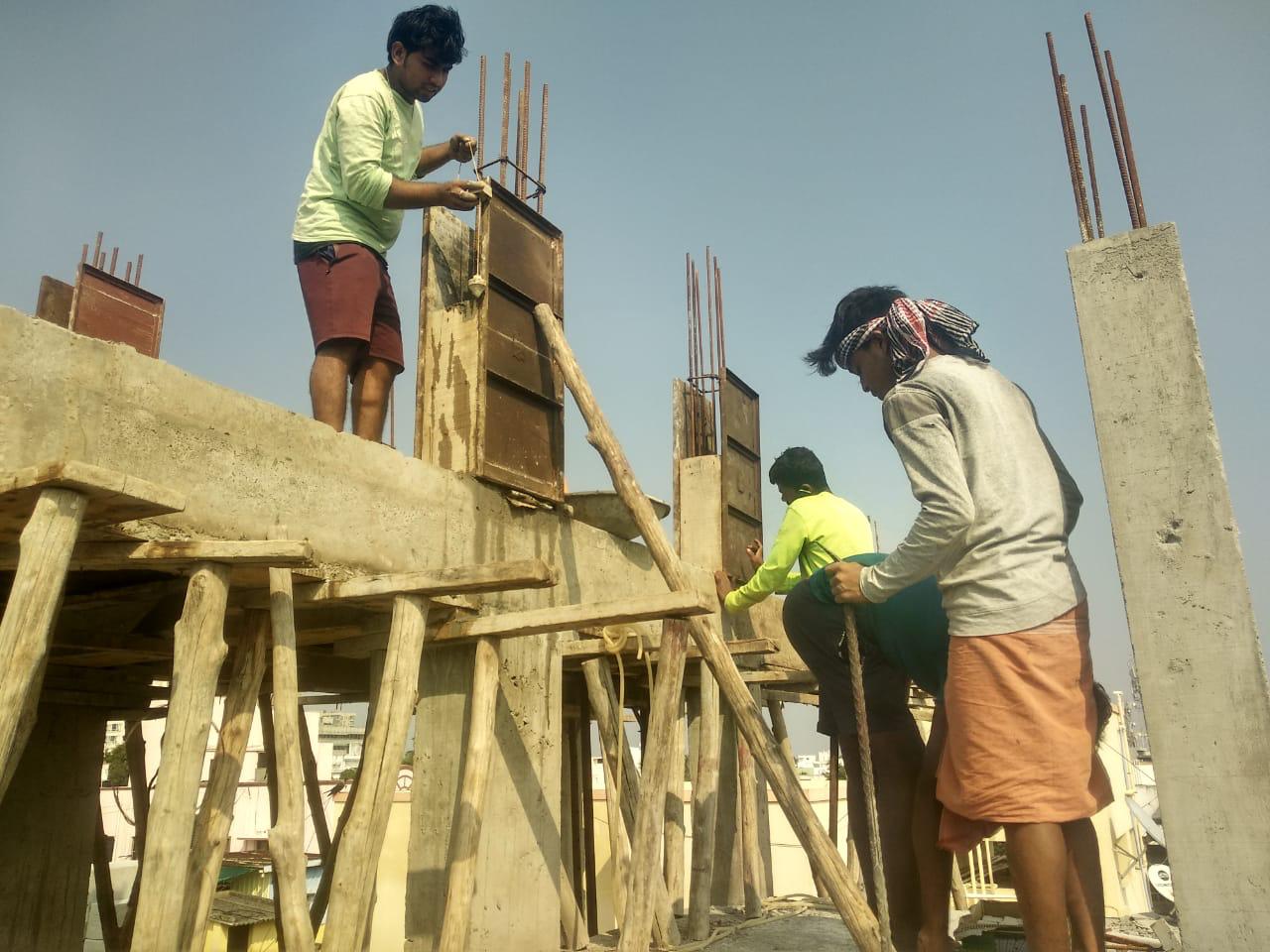

All R.C.C. Works 1:2:4 mix (M20 Grade) for Foundations, Columns, Beams, Slabs, Lintels, Lofts & Sunshade etc.
CM 1:3 mix for R.C.C. Area and C.M 1:5 mix for other wall super fine sponge finish.
Frame will be of 1st quality teak wood of size 7’x3’6” with teak wood (not exceeding Rs.2,100/Cft) using Molded single shutters with Goodrej Lock, Keels, Handle and Tower Bold Aldrops using Brass Material.
Each Bed Room using One no loft 2’ wide on Wall short span side only & kitchen Room using 2 Loft 2’ wide on short span side only.

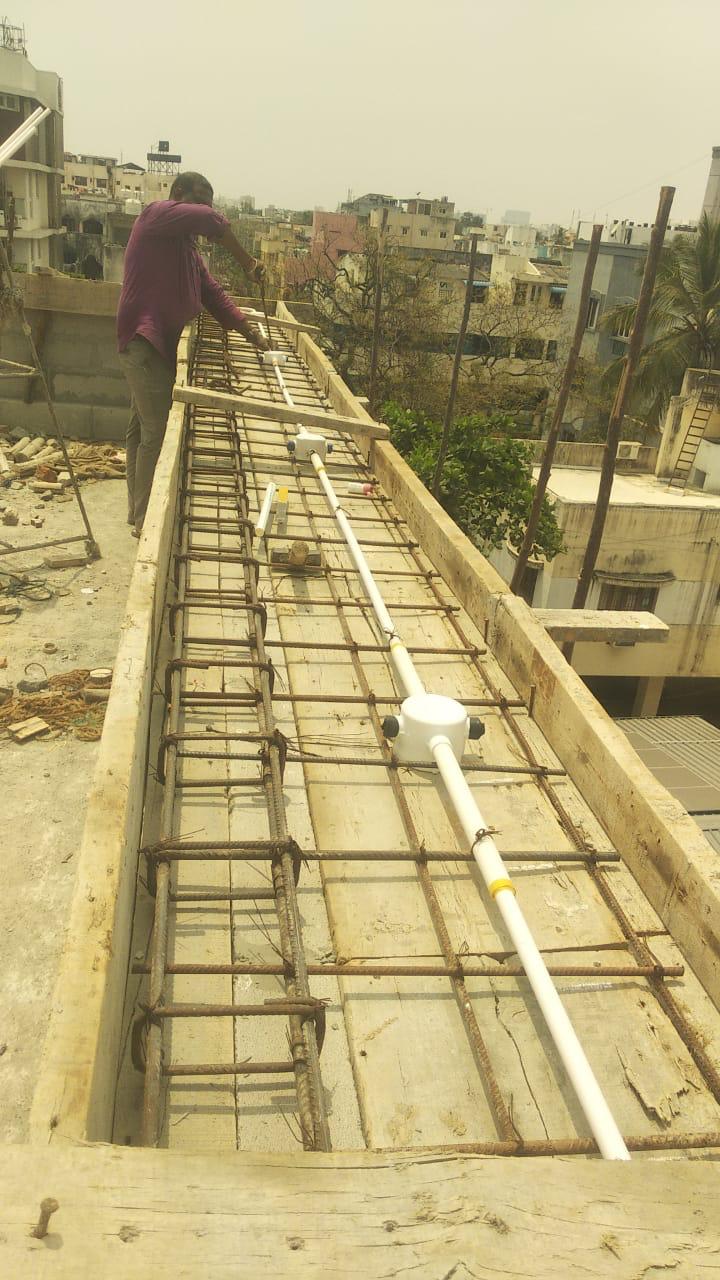

3 PHASE CONNECTION FOR EACH FLAT, Main Switch, Circuit Breakers, Concealed Copper wiring in PVC conduits, light points, fan points and plug points and plug for TV, Water Heater, Refrigerator, calling bell etc as shown in the table below
One No. 3 in Wall Mixture will be provided for E.W. Closet. One No. 2 in 1 Wall mixture for O.W. Closets. All fitting will be using Jaguar or Parry ware or Johnson Brands Only, Sanitary wares will be PARRYWARE or HINDWARE.
OnOpen Cupboards will be provided as BED ROOM : 4’x7’ overall size with 1 Nos. 12” width Double side polished Cuddapah slab, KITCHEN : 4’x7’ overall size with 2 Nos. 12” width Double side polished Cuddapah slab
Quality synthetic enamel Asian paints for all doors, windows and grills two coats over one coat primer
Kitchen : Dark colour glazed tiles of size 8”x12” using 2’ height only (Rate not Exceeding Rs.40/Sft) on walls over G20, Black Granite not exceed Rs.160/-Sft) platform and SS sink size 2’0”x1’6” (Rate not Exceeding Rs.2,500/-) will be provided. One No.4” diameter chimney opening and One No.12” diameter hex saws fan opening will be providedCeramic glazed tiles of size 8”x12” one the walls up to height of 7’ (Rate not Exceeding Rs.40/Sft) for Toilet
Parry ware make One No. Indian Water closet 20” and one Number E.W.closet and Two Nos 18” white wash basin will be provided in Each House.
With good quality 24 x 24 Verified Tiles using NITCO, Morbornite, Somay, Brand with matching skirting (Not exceeding Rs.60/Sft)
4” Brick jelly with lime over bed laying pressed Tiles using.
Window Grills – 1½ kgs per Sq.Ft.
One Head Room will be provided in 7’ Height RCC
Ms railing with Tiles or Kotta Flooring
12,500 Liter Capacity RCC Tank
2 nos (2000 lits) will be provided (common) (one for Bore well and another sump water)
One Number will be provided
5’ Height Brick Wall
One Number will be provided with Safety Gate
PCC with Cement plastering
5” Ø with above 100’0”
6 Passengers
Inner Walls using Good quality Wall Premier One coat over Two coatputty with Asian Tractor EMULTION Paint two coat roller finishing. Outer walls will be with 2 coats of ACE over one coat of White Cement paint.
